Made in USA
G11/FR5 Sheets
*Online Orders Coming Soon*

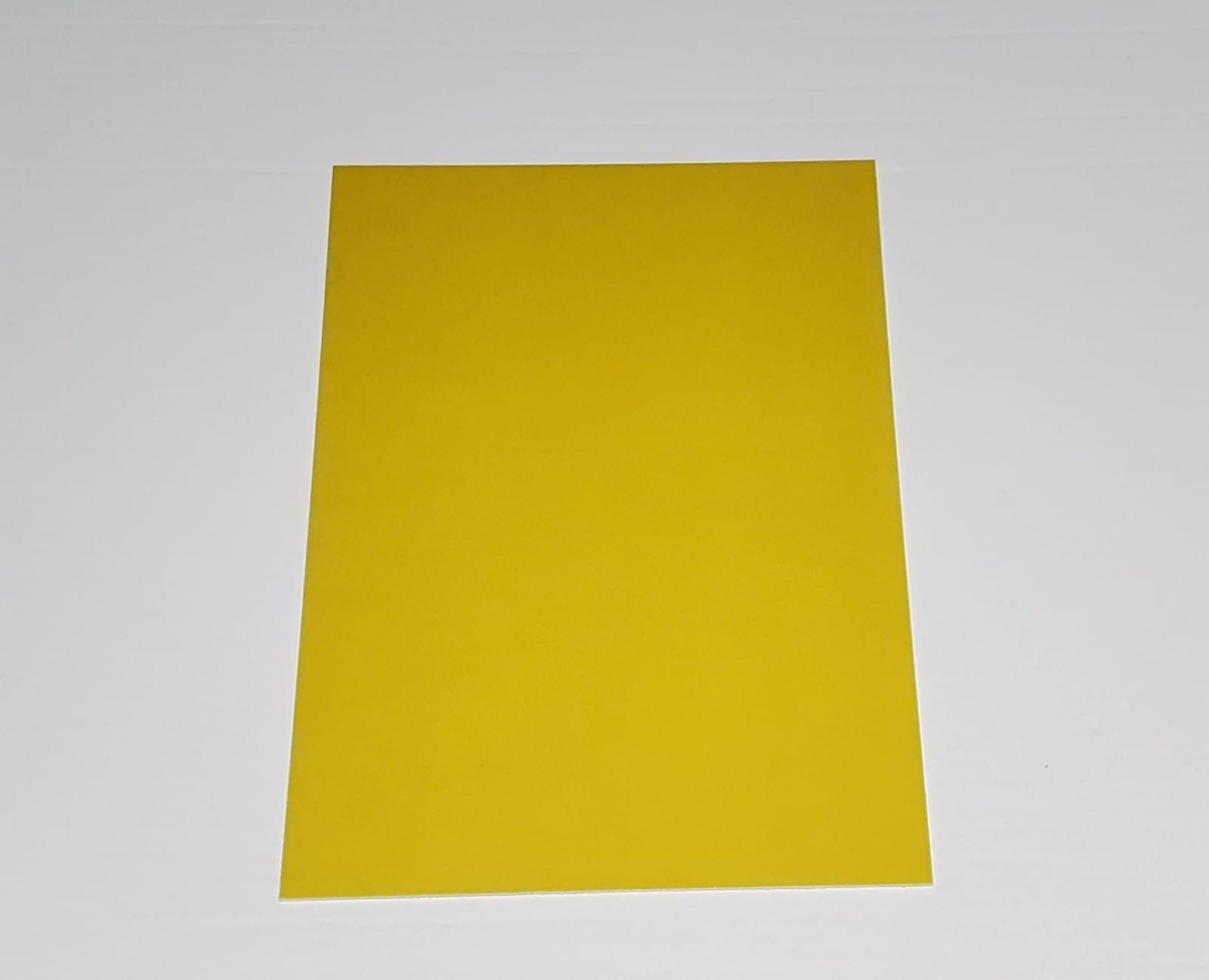

AEM offer Yellow G11/FR5
Please Note: $25 Order Minimum
- NEMA: Mil. Spec. MIL-I-24768/28
- Meets UL 94V0Epoxyglas Laminate sheet comprised of flame retardant/heat resistant epoxy resin and a woven fiberglass substate.
- Max Tem.: 356 F
- Sheets: Width & Length Tolerance: +/- 0.125" Up To 1/16" Thick; +/- 0.375" For all Other Thickness. 36" x 48" Sheet +/-1.000"
- Material can be light sanded with an extra cost of 20% per side.
- Secondary Operation: CNC Machining and Routing,Custom Cut Sheet Size, Shearing, Die Cutting, Sanding, Drilling, Hardware Instulation
Standard G11/FR5 Sheets*
(Listed in Length x Width)
*Customized Orders can be done through the Contact Form below.
Natural Sheets
Natural 12" x 12" Sheets
| Nema Grades | Thick.Tol. | SKU | PRICE |
|---|---|---|---|
| 0.015" | +/-.004" | 00151212-FR5-NAT | $13.51 |
| 0.031" | +/-.007" | 00311212-FR5-NAT | $16.29 |
| 0.047" | +/-.008" | 00471212-FR5-NAT | $21.60 |
| 0.062" | +/-.008" | 00621212-FR5-NAT | $28.34 |
| 0.093" | +/-.009" | 00931212-FR5-NAT | $39.62 |
| 0.125" | +/-.012" | 01251212-FR5-NAT | $52.44 |
| 0.187" | +/-.019" | 01871212-FR5-NAT | $72.92 |
| 0.250" | +/-.022" | 02501212-FR5-NAT | $97.49 |
| 0.312" | +/-.026" | 03121212-FR5-NAT | $121.64 |
| 0.375" | +/-.030" | 03751212-FR5-NAT | $134.94 |
| 0.500" | +/-.036" | 05001212-FR5-NAT | $173.03 |
Natural 12" x 24" Sheets
| Nema Grades | Thick.Tol. | SKU | Price |
|---|---|---|---|
| 0.015" | +/-.004" | 00151224-FR5-NAT | $21.01 |
| 0.031" | +/-.007" | 00311224-FR5-NAT | $25.34 |
| 0.047" | +/-.008" | 00471224-FR5-NAT | $33.60 |
| 0.062" | +/-.008" | 00621224-FR5-NAT | $44.08 |
| 0.093" | +/-.009" | 00931224-FR5-NAT | $61.62 |
| 0.125" | +/-.012" | 01251224-FR5-NAT | $81.57 |
| 0.187" | +/-.019" | 01871224-FR5-NAT | $113.42 |
| 0.250" | +/-.022" | 02501224-FR5-NAT | $151.64 |
| 0.312" | +/-.026" | 03121224-FR5-NAT | $189.21 |
| 0.375" | +/-.030" | 03751224-FR5-NAT | $209.91 |
| 0.500" | +/-.036" | 05001224-FR5-NAT | $269.15 |
Natural 18" x 24" Sheets
| Nema Grades | Thick.Tol. | SKU | PRICE |
|---|---|---|---|
| 0.015" | +/-.004" | 00151824-FR5-NAT | $29.27 |
| 0.031" | +/-.007" | 00311824-FR5-NAT | $35.30 |
| 0.047" | +/-.008" | 00471824-FR5-NAT | $46.79 |
| 0.062" | +/-.008" | 00621824-FR5-NAT | $61.39 |
| 0.093" | +/-.009" | 00931824-FR5-NAT | $85.83 |
| 0.125" | +/-.012" | 01251824-FR5-NAT | $113.62 |
| 0.187" | +/-.019" | 01871824-FR5-NAT | $157.98 |
| 0.250" | +/-.022" | 02501824-FR5-NAT | $211.22 |
| 0.312" | +/-.026" | 03121824-FR5-NAT | $263.54 |
| 0.375" | +/-.030" | 03751824-FR5-NAT | $292.37 |
| 0.500" | +/-.036" | 05001824-FR5-NAT | $374.89 |
Natural 24" x 36" Sheets
| Nema Grades | Thick.Tol. | SKU | Price |
|---|---|---|---|
| 0.015" | +/-.004" | 00152436-FR5-NAT | $56.28 |
| 0.031" | +/-.007" | 00312436-FR5-NAT | $67.88 |
| 0.047" | +/-.008" | 00472436-FR5-NAT | $89.99 |
| 0.062" | +/-.008" | 00622436-FR5-NAT | $118.06 |
| 0.093" | +/-.009" | 00932436-FR5-NAT | $165.06 |
| 0.125" | +/-.012" | 01252436-FR5-NAT | $218.50 |
| 0.187" | +/-.019" | 01872436-FR5-NAT | $303.81 |
| 0.250" | +/-.022" | 02502436-FR5-NAT | $406.19 |
| 0.312" | +/-.026" | 03122436-FR5-NAT | $506.81 |
| 0.375" | +/-.030" | 03752436-FR5-NAT | $562.25 |
| 0.500" | +/-.036" | 05002436-FR5-NAT | $720.94 |
Natural 36" x 48" Sheets
| Nema Grades | Thick.Tol. | SKU | PRICE |
|---|---|---|---|
| 0.015" | +/-.004" | 00153648-FR5-NAT | $90.05 |
| 0.031" | +/-.007" | 00313648-FR5-NAT | $108.60 |
| 0.047" | +/-.008" | 00473648-FR5-NAT | $143.98 |
| 0.062" | +/-.008" | 00623648-FR5-NAT | $188.90 |
| 0.093" | +/-.009" | 00933648-FR5-NAT | $264.10 |
| 0.125" | +/-.012" | 01253648-FR5-NAT | $349.60 |
| 0.187" | +/-.019" | 01873648-FR5-NAT | $486.10 |
| 0.250" | +/-.022" | 02503648-FR5-NAT | $649.90 |
| 0.312" | +/-.026" | 03123648-FR5-NAT | $810.90 |
| 0.375" | +/-.030" | 03753648-FR5-NAT | $899.60 |
| 0.500" | +/-.036" | 05003648-FR5-NAT | $1,153.50 |
Black Sheets
Black 12" x 12" Sheets
| Nema Grades | Thick.Tol. | SKU | PRICE |
|---|---|---|---|
| 0.015" | +/-.004" | 00151212-FR5-BLK | $20.27 |
| 0.031" | +/-.007" | 00311212-FR5-BLK | $23.81 |
| 0.047" | +/-.008" | 00471212-FR5-BLK | $29.66 |
| 0.062" | +/-.008" | 00621212-FR5-BLK | $35.29 |
| 0.093" | +/-.009" | 00931212-FR5-BLK | $54.39 |
| 0.125" | +/-.012" | 01251212-FR5-BLK | $70.97 |
| 0.187" | +/-.019" | 01871212-FR5-BLK | $86.45 |
| 0.250" | +/-.022" | 02501212-FR5-BLK | $125.96 |
| 0.312" | +/-.026" | 03121212-FR5-BLK | $157.16 |
| 0.375" | +/-.030" | 03751212-FR5-BLK | $188.91 |
| 0.500" | +/-.036" | 05001212-FR5-BLK | $251.90 |
Black 12" x 24" Sheets
| Nema Grades | Thick.Tol. | SKU | Price |
|---|---|---|---|
| 0.015" | +/-.004" | 00151224-FR5-BLK | $31.52 |
| 0.031" | +/-.007" | 00311224-FR5-BLK | $37.04 |
| 0.047" | +/-.008" | 00471224-FR5-BLK | $46.14 |
| 0.062" | +/-.008" | 00621224-FR5-BLK | $54.89 |
| 0.093" | +/-.009" | 00931224-FR5-BLK | $84.61 |
| 0.125" | +/-.012" | 01251224-FR5-BLK | $110.40 |
| 0.187" | +/-.019" | 01871224-FR5-BLK | $134.47 |
| 0.250" | +/-.022" | 02501224-FR5-BLK | $195.93 |
| 0.312" | +/-.026" | 03121224-FR5-BLK | $244.48 |
| 0.375" | +/-.030" | 03751224-FR5-BLK | $293.86 |
| 0.500" | +/-.036" | 05001224-FR5-BLK | $391.84 |
Black 18" x 24" Sheets
| Nema Grades | Thick.Tol. | SKU | PRICE |
|---|---|---|---|
| 0.015" | +/-.004" | 00151824-FR5-BLK | $43.91 |
| 0.031" | +/-.007" | 00311824-FR5-BLK | $51.59 |
| 0.047" | +/-.008" | 00471824-FR5-BLK | $64.26 |
| 0.062" | +/-.008" | 00621824-FR5-BLK | $76.46 |
| 0.093" | +/-.009" | 00931824-FR5-BLK | $117.85 |
| 0.125" | +/-.012" | 01251824-FR5-BLK | $153.77 |
| 0.187" | +/-.019" | 01871824-FR5-BLK | $187.30 |
| 0.250" | +/-.022" | 02501824-FR5-BLK | $272.90 |
| 0.312" | +/-.026" | 03121824-FR5-BLK | $340.52 |
| 0.375" | +/-.030" | 03751824-FR5-BLK | $409.31 |
| 0.500" | +/-.036" | 05001824-FR5-BLK | $545.77 |
Black 24" x 36" Sheets
| Nema Grades | Thick.Tol. | SKU | Price |
|---|---|---|---|
| 0.015" | +/-.004" | 00152436-FR5-BLK | $84.44 |
| 0.031" | +/-.007" | 00312436-FR5-BLK | $99.21 |
| 0.047" | +/-.008" | 00472436-FR5-BLK | $123.58 |
| 0.062" | +/-.008" | 00622436-FR5-BLK | $147.03 |
| 0.093" | +/-.009" | 00932436-FR5-BLK | $226.63 |
| 0.125" | +/-.012" | 01252436-FR5-BLK | $295.72 |
| 0.187" | +/-.019" | 01872436-FR5-BLK | $360.19 |
| 0.250" | +/-.022" | 02502436-FR5-BLK | $524.81 |
| 0.312" | +/-.026" | 03122436-FR5-BLK | $654.84 |
| 0.375" | +/-.030" | 03752436-FR5-BLK | $787.13 |
| 0.500" | +/-.036" | 05002436-FR5-BLK | $1,049.56 |
Black 36" x 48" Sheets
| Nema Grades | Thick.Tol. | SKU | PRICE |
|---|---|---|---|
| 0.015" | +/-.004" | 00153648-FR5-BLK | $135.10 |
| 0.031" | +/-.007" | 00313648-FR5-BLK | $158.73 |
| 0.047" | +/-.008" | 00473648-FR5-BLK | $197.73 |
| 0.062" | +/-.008" | 00623648-FR5-BLK | $235.25 |
| 0.093" | +/-.009" | 00933648-FR5-BLK | $362.60 |
| 0.125" | +/-.012" | 01253648-FR5-BLK | $473.15 |
| 0.187" | +/-.019" | 01873648-FR5-BLK | $576.30 |
| 0.250" | +/-.022" | 02503648-FR5-BLK | $839.70 |
| 0.312" | +/-.026" | 03123648-FR5-BLK | $1,047.75 |
| 0.375" | +/-.030" | 03753648-FR5-BLK | $1,259.40 |
| 0.500" | +/-.036" | 05003648-FR5-BLK | $1,679.30 |
TO ORDER, PLEASE CALL, FAX, EMAIL
OR FILL OUT THE FORM BELOW
